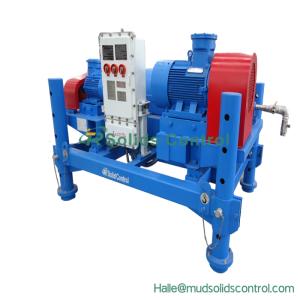

TRGLW550N-1 Centrifuge with Large Throughput | The ultimate solution for solid-phase control of drilling fluids
TR Solid Control specializes in manufacturing TRGLW550N-1 ultra-large throughput centrifuges, which are designed for solid-liquid separation needs in high-end fields such as deep well drilling, large-scale shale gas mining, and offshore platforms. Using innovative dual frequency conversion drive technology and intelligent control system, this product has large processing capacity, precise separation effect and intelligent operation and maintenance characteristics, and is the core equipment of modern drilling fluid treatment system
Product advantages
✔ The industry's largest throughput: 90m³/h processing capacity to meet the most demanding applications
✔ Highest separation accuracy: up to D502μm separation point, liquid phase clarity exceeds NTU50
✔Economical operation: 30% lower energy consumption and 50% longer maintenance intervals
✔ Highest degree of intelligence: Comprehensive intelligent monitoring and support remote operation and maintenance
✔ The most adaptable: It can handle drilling fluid of various densities from 1.0 to 3.0 SG
Technical Specifications
|
Model |
TRGLW550N-1 |
|
Bowl Diameter |
550mm (22inch) |
|
Bowl Length |
1800mm(49.2inch) |
|
Max Capacity |
90m3/h |
|
Max Speed |
3000r/min |
|
Rotary Speed |
2600r/min |
|
G-Force |
2711 |
|
Separation |
2~5μm |
|
Main Drive |
55kW-4p |
|
Back Drive |
22kW-4p |
|
Weight |
5800kg |
|
Dimension |
3250X1960X1350 |
Applications:
✔ Deep well ultra-deep well drilling: high temperature and high pressure drilling fluid treatment, barite fine recovery
✔ Large-scale shale gas exploitation: large-scale treatment of fracturing fluid and efficient recovery of backflow fluid
✔ Offshore Drilling Platforms: Space-optimized design to adapt to marine corrosive environments
✔ Special working condition treatment: high-density drilling fluid treatment, oil-based mud purification
✔ Environmental protection projects: large-scale sewage treatment, industrial sludge dewatering
Reasons to choose TR
✔ Professional manufacturing experience: 20 years of experience in R&D and manufacturing of solid control equipment, mastering the core technology
✔ Advanced Production Technology: Employing CNC machining centers and dedicated production lines to ensure product quality
✔ Strict Quality Control: With ISO9001 and API certifications, each device undergoes rigorous testing
✔ Perfect after-sales support: Provide a full range of services such as installation guidance, operation training, and maintenance
✔ Global supply network: Products are exported to more than 30 countries and regions, and the quality has been verified by the market
About TR Solid Control
TR Solid Control is a professional solid control equipment manufacturer, focusing on the R&D and production of centrifuges, vibrating screens, slurry cleaners and other equipment. The company has a modern production base and advanced testing equipment, and is committed to providing high-performance and high-quality solid control equipment for global customers through ISO9001 and API certification, helping customers improve drilling efficiency and reduce operating costs.
